MgO Thermocouple Configurator

Thermocouple Type*
- F1
  Thermocouple with 20 gauge fiberglass insulated lead wire
- F2
  Thermocouple with 20 gauge fiberglass insulated lead wire and stainless steel overbraid
- F3
  Thermocouple with 20 gauge fiberglass insulated lead wire and terminated with male plug
- F4
  Thermocouple with 20 gauge fiberglass insulated lead wire and stainless steel overbraid and terminated with male plug
- F5
  Thermocouple with 20 gauge fiberglass insulated lead wire and terminated with female jack
- F6
  Thermocouple with 20 gauge fiberglass insulated lead wire and stainless steel overbraid and terminated with female jack
- F7
  Thermocouple terminated with male plug
- F8
  Thermocouple terminated with female jack

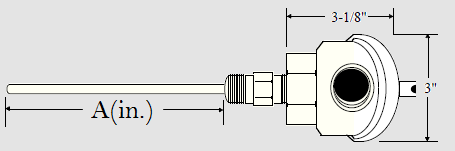

- F9
  Thermocouple teminated with aluminum screw cover head and 1/2" x 1/2" NPT x 1"-1/2" long 316 SS NPT fitting brazed to sheath. Note: Other head materials (SS, Nylon, etc.) available on request

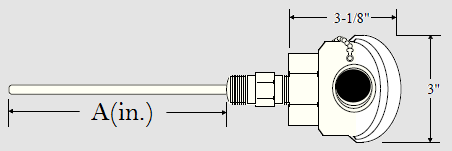

- F9-EP
  Thermocouple terminated with explosion proof head. Same description as F9 except with screw cover explosion proof assembly
- F10
  Replacement thermocouple element for figures F9 or F9-EP. Shealth is silver-soldered to 1/2" NPT 316 Mounting Nut

Sheath Diameter*
Now choose a sheath outside diameter:
- 1/16" = .063"
- 1/8" = .125"
- 3/16" = .188"
- 1/4" = .250"
- 3/8" = .375"
Sheath Material/Calibration*
Now choose a sheath material and calibration type (others available on request):
- Stainless Steel to 1800°F
  J - Iron Constantan
- Stainless Steel to 1800°F
  T - Copper Constantan
- Stainless Steel to 1800°F
  K - Chromel Alumel
- Inconel to 2100°F
  k - Chromel Alumel

Sheath Junction*
Now choose a sheath junction style:
- Grounded (G)
- Ungrounded (UG)
- Exposed (E)

Spring-loaded Option
Now choose a spring-loaded option. Spring-loaded type is not sealed from process and is generally used with a thermowell.
- Spring-loaded
- Not spring-loaded

A(in.) Measurement*
B(ft.) Measurement (Note, your thermocouple may not have a B measurement):
